Wes-Trix® WT1 Corten Wall Panels

Wes-Trix® WT1 is a rigid corten wall panel with concealed fasteners. It's a symmetrical panel that has a boxy appearance. This adds depth and texture. West-Trix WT1 will look stunning as an accent wall or as a feature wall on your next commercial or residential project.



interactive color chart 3D Textures/E-Samples®

Is Wes-Trix® Right For You?
Concealed Fastener Corten Wall Panel

Wes-Trix® WT1 Corten Siding Panel

Wes-Trix® WT1 features a simple rib pattern that creates a clean, modern look with a lasting appeal. It's available in more than 100 colors and finishes, giving you plenty of design flexibility.

The boxy and raised corrugations create a strong and durable panel. The design of the corrugations significantly reduce the chance of oil canning. This makes it easier to install when compared to other rusted wall panels that have concealed fasteners.

Wes-Trix® WT1 can be installed vertically or horizontally. It has a tongue and groove connection

Quick Links

Color Charts

Installation Guide

Product Data Sheets (Coming Soon)

Product Specifications (Coming Soon)

Trim & Flashings

Accessories

Product Specifications

Wes-Trix Corten Wall Panels

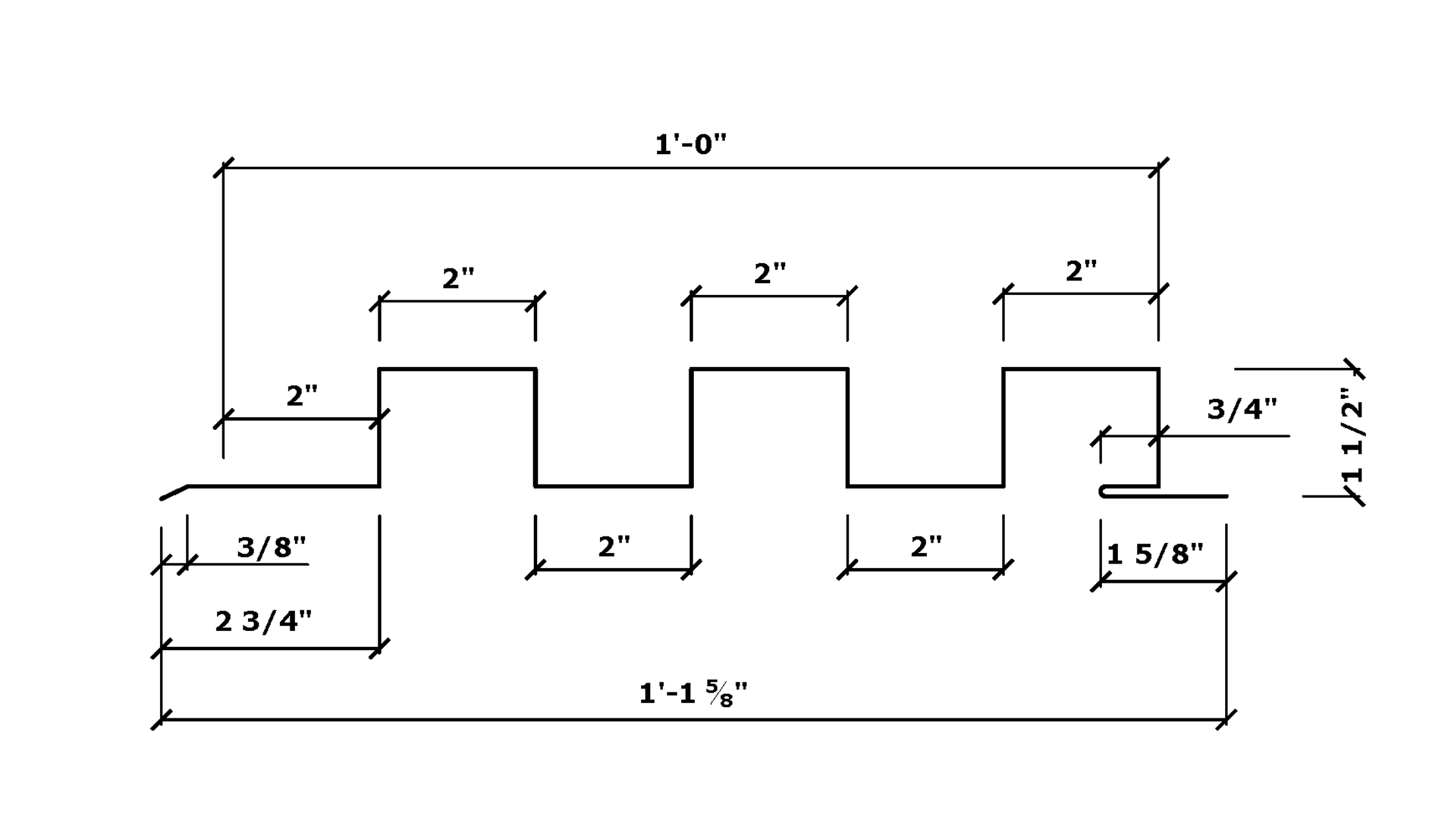

Dimensions

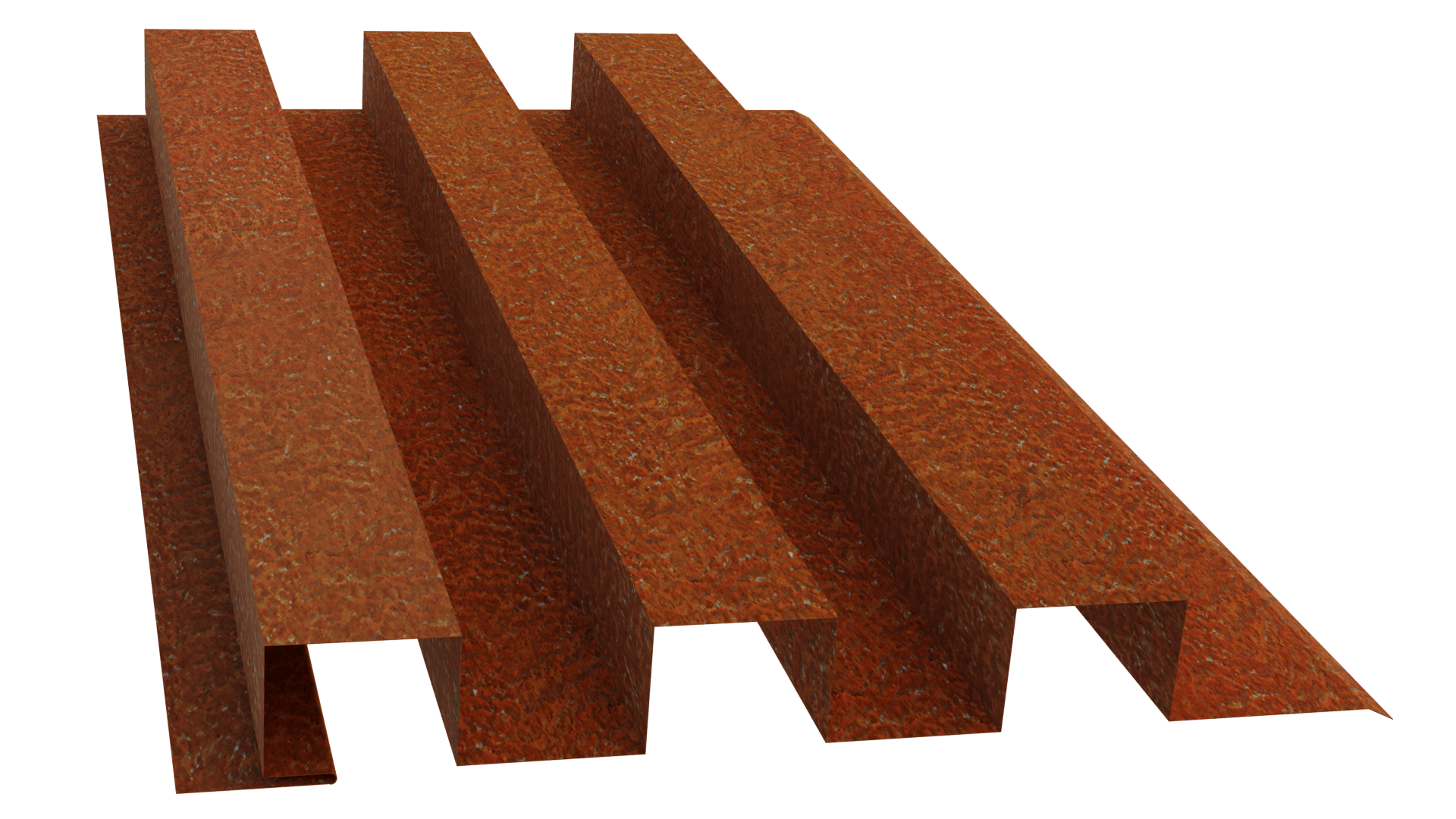

westrix-wall-siding-panel-corten View Panel Dimensions Installation Details

Panel Width: 12" Coverage

Rib Height: 1.5"

Rib Distance (Pitch): 4"

Panel Length: 1' to 31'10"

Product Data

Material Type: Wes-Trix® WT1

Available Gauges: 16, 18, 20, 22, 24, 26

Fastening Type: Concealed Fasteners

Substrate: A606-4 (aka Corten), or Bare Cold Rolled

Installation
Vertical or horizontal installation with a tongue and groove connection.

Applications
Residential
Commercial
Agricultural
Interior

Product Documents

Trim And Flashings

3D Textures/E-Samples

CAD Details (Coming Soon)

Care & Maintenance

Class A Fire Rating

Field Cutting & Touch Up Paint

Installation Guide

Paint Warranties

Product Data Sheets (Coming Soon)

Product Specifications (Coming Soon)

Solar Reflectivity Index

Accessories

Warranty Info

Recommendations & Cautions

Ordering Information

Western States Metal Roofing

The Look Of Rust In A Painted Panel

The look of an authentic rusted metal roof, but without all of the problems.

  • No rust stains
  • Paint warranty
  • Arrives looking weathered

Learn More

06-Standing-Seam-Corten-AZP-Raw

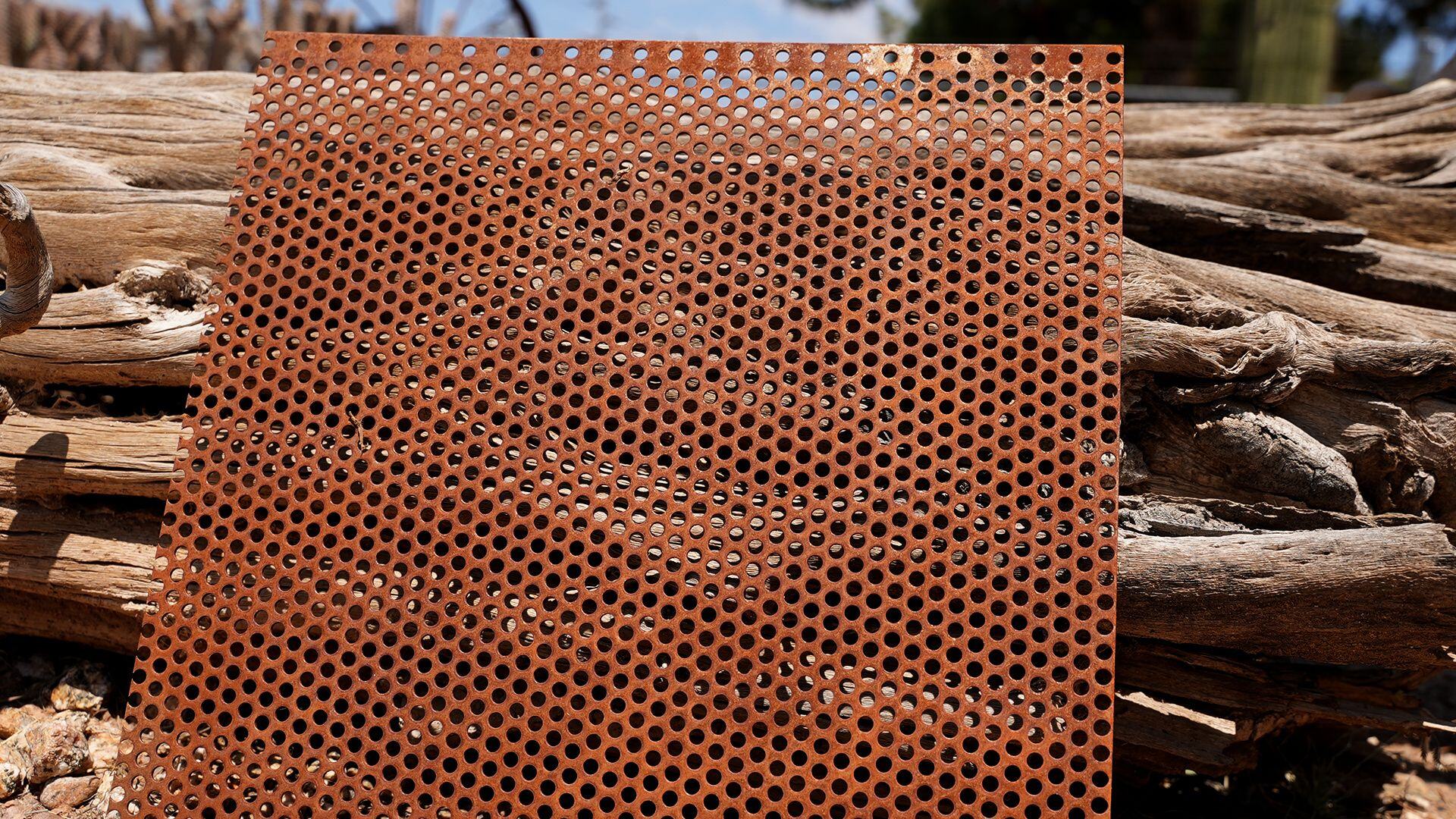

Perforated Metal Panels
